Node.js + PostgreSQL Deployment Guide on Sealos

To deploy Node.js with PostgreSQL on Sealos, treat the repository as a backend service plus database system. The Node.js service owns database access, private credentials, migrations, validation, and the HTTP endpoint that proves live read/write behavior.

This keeps PostgreSQL credentials out of browsers and static assets while preserving the Sealos one-request deployment flow. The Sealos plugin should understand the service, database env keys, migration command, generated resources, and Runtime Truth Pass as one deployable system.

Start with How to Deploy a Node.js App to Sealos in 5 Minutes if this is your first Sealos deployment. Use Complete Production Deployment Checklist for Node.js on Sealos before switching real traffic to the database-backed service.

Key takeaways

By the end, you will have:

• A Node.js service running on Sealos hosting
• A managed Sealos PostgreSQL database generated as part of the same deployment flow
• The database connection env var wired into the Node.js service environment
• Database migrations handled as part of the rollout plan
• A public HTTPS URL
• A repeatable update path for Node.js production deployment

Prerequisites

You need:

• A Node.js service in GitHub
• PostgreSQL support through Prisma, Drizzle, TypeORM, Kysely, Knex, node-postgres, or another server-side library
• A Sealos Cloud account
• The Sealos plugin installed in Codex or Claude Code
• Docker available if the repository does not already provide a reusable linux/amd64 image
• A .env.example file that documents required variables
• A migration command, if your service uses schema migrations

The Sealos plugin installs deploy, database, S3, canvas, app-builder, and supporting cloud-native skills from root skills/**.

Recommended native install for Codex:

codex plugin marketplace add labring/sealos-skills
codex plugin add sealos@sealos

Compatibility install for Codex:

npx plugins add https://github.com/labring/sealos-skills --target codex

Recommended native install for Claude Code:

claude plugin marketplace add labring/sealos-skills
claude plugin install sealos@sealos

Compatibility install for Claude Code:

npx plugins add https://github.com/labring/sealos-skills --target claude-code

After installation:

• In Codex CLI, use $sealos
• In Codex App, click + -> Plugins -> Sealos
• In Claude Code, use /sealos

The correct deployment model

A Node.js PostgreSQL app should be deployed as one service/database system. The service owns HTTP routes, validation, auth, database connections, migration execution, and the read/write proof endpoint.

Node.js service
   |
   v
PostgreSQL

Ask the Sealos plugin to generate the Node.js app, Service, Ingress, PostgreSQL resource, environment variables, migration behavior, and Sealos template together.

The generated .sealos/template/index.yaml should represent the Node.js app, Service, Ingress, PostgreSQL resource, generated database env var, and any user-provided non-database secrets required by the service.

Example architecture

A typical Node.js hosting setup with PostgreSQL on Sealos looks like this:

GitHub repo
   |
   +-- server.js, app.js, or src/server.ts
   +-- db/ or prisma/: schema and migration command
   +-- package.json: npm start and db:migrate
   |
   v
Sealos plugin deployment plan
   |
   +-- generated Sealos app resource
   +-- generated Sealos Service and Ingress
   +-- generated Sealos PostgreSQL resource
   +-- generated database env key
   +-- user-provided non-database secrets
   +-- .sealos/analysis.json
   +-- .sealos/template/index.yaml
   |
   v
Sealos Cloud
   |
   +-- Node.js service: server-side database access
   +-- PostgreSQL: generated database
   +-- .sealos/state.json after Runtime Truth Pass
   +-- Public HTTPS URL

The Node.js service should connect to PostgreSQL through the environment variable it already uses. Many services use DATABASE_URL, but some templates use POSTGRES_URL, POSTGRES_PRISMA_URL, PG_CONNECTION_STRING, or another app-specific key. The Sealos plan must detect the actual database env-key detection source from .env.example and code, then source that value from the generated PostgreSQL resource during deployment.

Step 1: Make the repo database-ready

Start with an explicit .env.example so the Sealos plugin can classify required inputs and detect the service database key.

Prisma or direct pg example:

DATABASE_URL="postgresql://USER:PASSWORD@HOST:PORT/DATABASE"
SESSION_SECRET="replace-me"
PORT=3000

Some services use POSTGRES_URL instead:

POSTGRES_URL="postgresql://USER:PASSWORD@HOST:PORT/DATABASE"
SESSION_SECRET="replace-me"
PORT=3000

Keep real values out of commits.

Your repo should ignore local env files:

.env
.env.local
.env.production.local

Your package.json should expose the commands needed by deployment and migration.

Prisma example:

{
  "scripts": {
    "build": "tsc",
    "start": "node dist/server.js",
    "db:migrate": "prisma migrate deploy",
    "db:generate": "prisma generate"
  }
}

Drizzle example:

{
  "scripts": {
    "build": "tsc",
    "start": "node dist/server.js",
    "db:migrate": "drizzle-kit migrate"
  }
}

Knex or node-pg-migrate example:

{
  "scripts": {
    "start": "node app.js",
    "db:migrate": "node-pg-migrate up"
  }
}

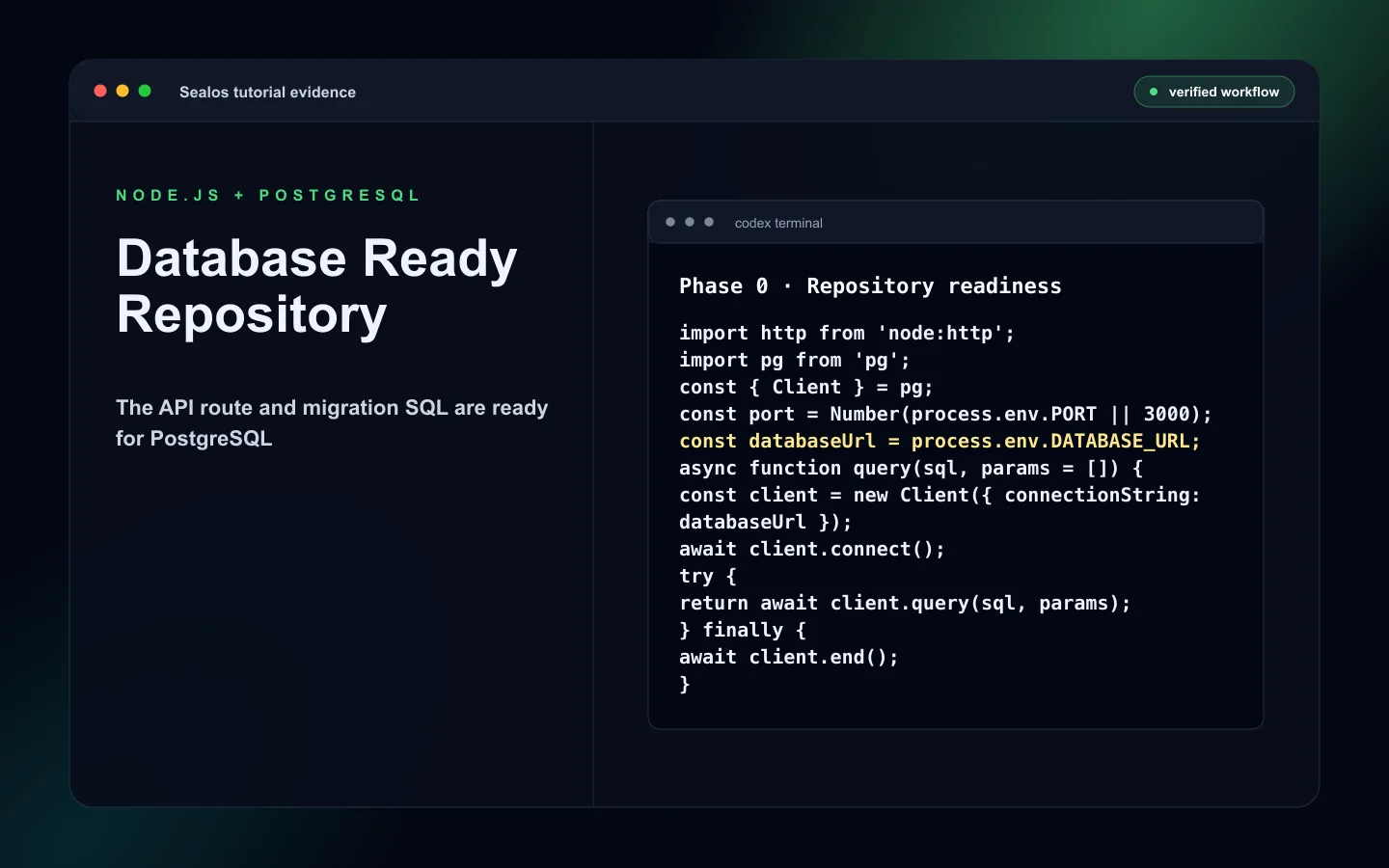

Node.js database-ready repo with env examples and migration scripts

Step 2: Ask the Sealos plugin to deploy the service and PostgreSQL

Ask Sealos to deploy the repository and include PostgreSQL in the generated resources. The prompt should describe the app as a Node.js service with PostgreSQL.

In Codex:

$sealos deploy https://github.com/<owner>/<repo> as a Node.js service with PostgreSQL

Or from inside the repo:

$sealos deploy this Node.js service to Sealos with PostgreSQL

In Claude Code:

/sealos deploy this Node.js service to Sealos with PostgreSQL

One request should make the plugin inspect the service, generate all deployment resources including the database, wire DATABASE_URL or POSTGRES_URL into the Node.js service, and deploy the system.

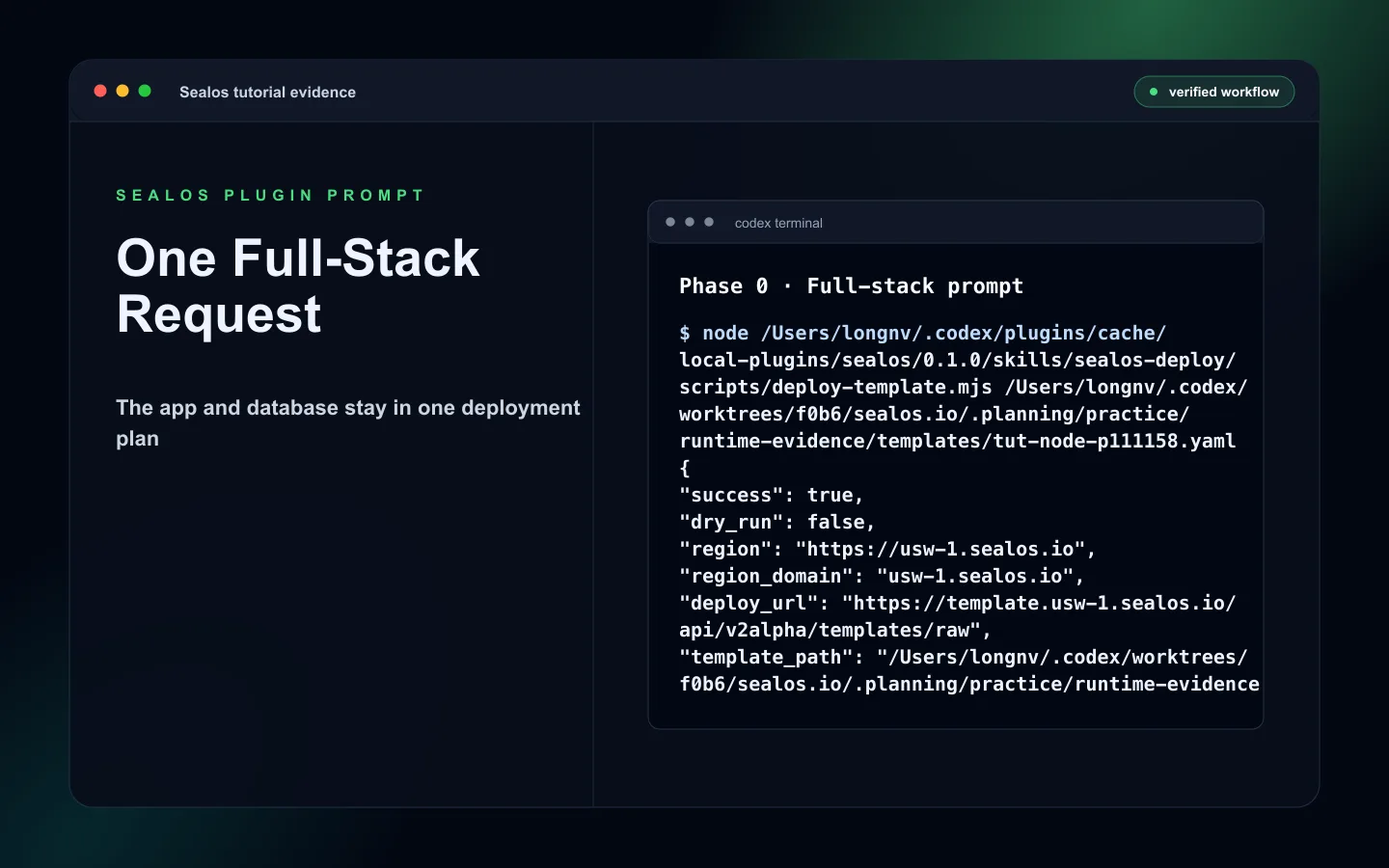

Node.js full-stack deploy prompt for PostgreSQL on Sealos

Step 3: Review the generated app, service, ingress, env, and database plan

Before it deploys, the Sealos plugin should show a plan. Review it as one full-stack deployment.

A good plan should identify the generated resources as a single deployment plan:

Runtime: Node.js service
Entrypoint: server.js, app.js, or dist/server.js
Runtime command: npm start
Service port: from PORT
Database: PostgreSQL
Database env key: DATABASE_URL, POSTGRES_URL, POSTGRES_PRISMA_URL, or the key your service reads
ORM/library: Prisma, Drizzle, TypeORM, Kysely, Knex, or pg if present
Migration command: prisma migrate deploy, drizzle-kit migrate, node-pg-migrate up, or repo-specific command
Generated resources: app + Service + Ingress + env vars + PostgreSQL resource
Inspection files: .sealos/analysis.json + .sealos/template/index.yaml

Confirm these details:

• The generated Sealos app uses the correct image, start command, and port
• The Service exposes the same port the Node.js service reads from PORT
• The Ingress gives the expected public route
• The PostgreSQL resource is generated for this service
• The service actual database env key is mapped from the generated PostgreSQL resource
• The key matches source code, such as DATABASE_URL, POSTGRES_URL, or an app-specific name
• Required non-database secrets are still requested from you
• Migration behavior is explicit
• Public URL and custom domain plan are clear
• .sealos/analysis.json reflects the detected service, database signal, env keys, image path, and migration hints
• .sealos/template/index.yaml is the resource preview for the full-stack plan

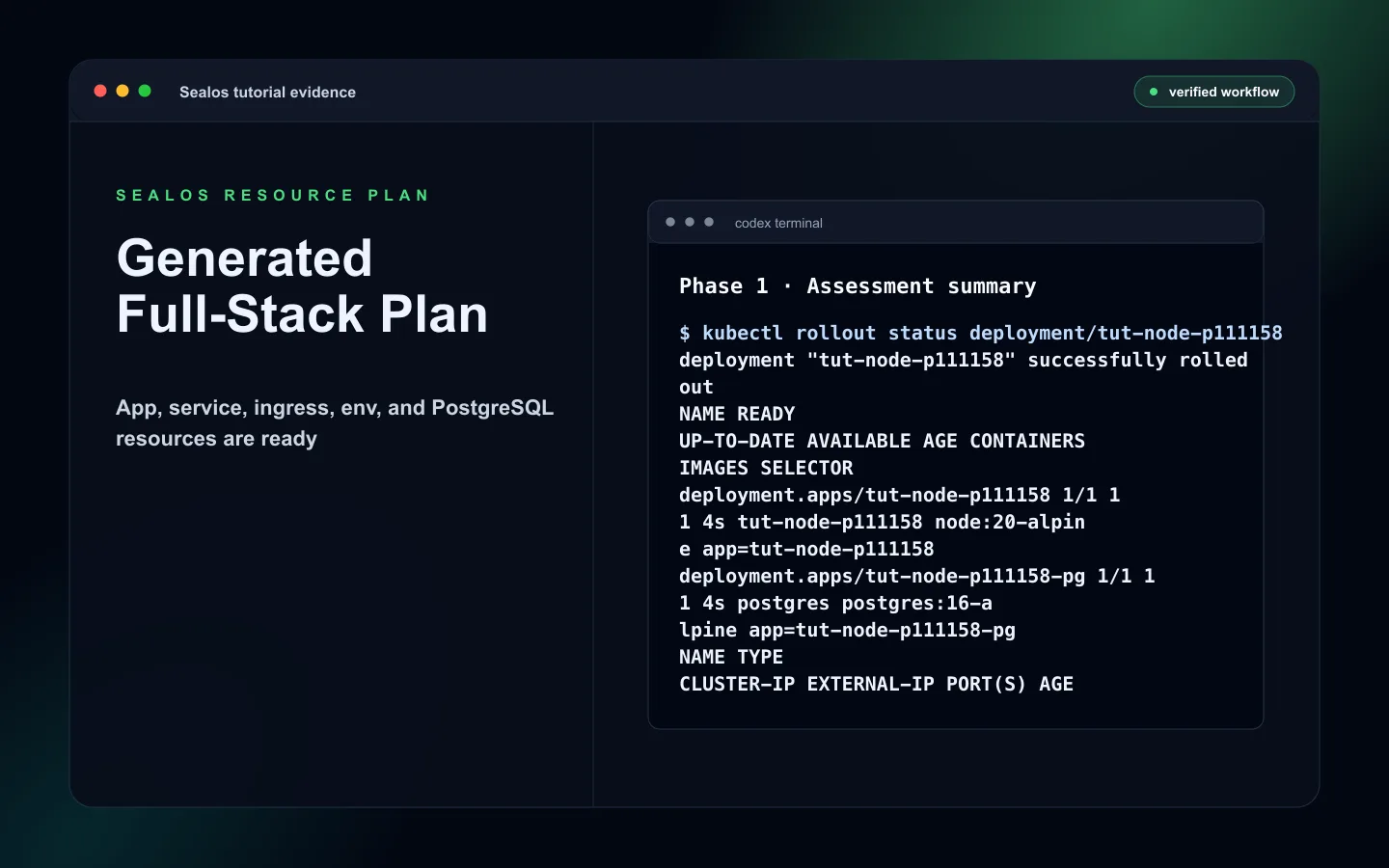

Node.js generated app service ingress env and PostgreSQL plan

Step 4: Provide required production inputs

Provide only real values through the Sealos configuration step. Keep placeholder examples in source files.

Typical required values include:

Database credentials stay server-side. A public browser or static asset should call the Node.js service instead of reading PostgreSQL credentials.

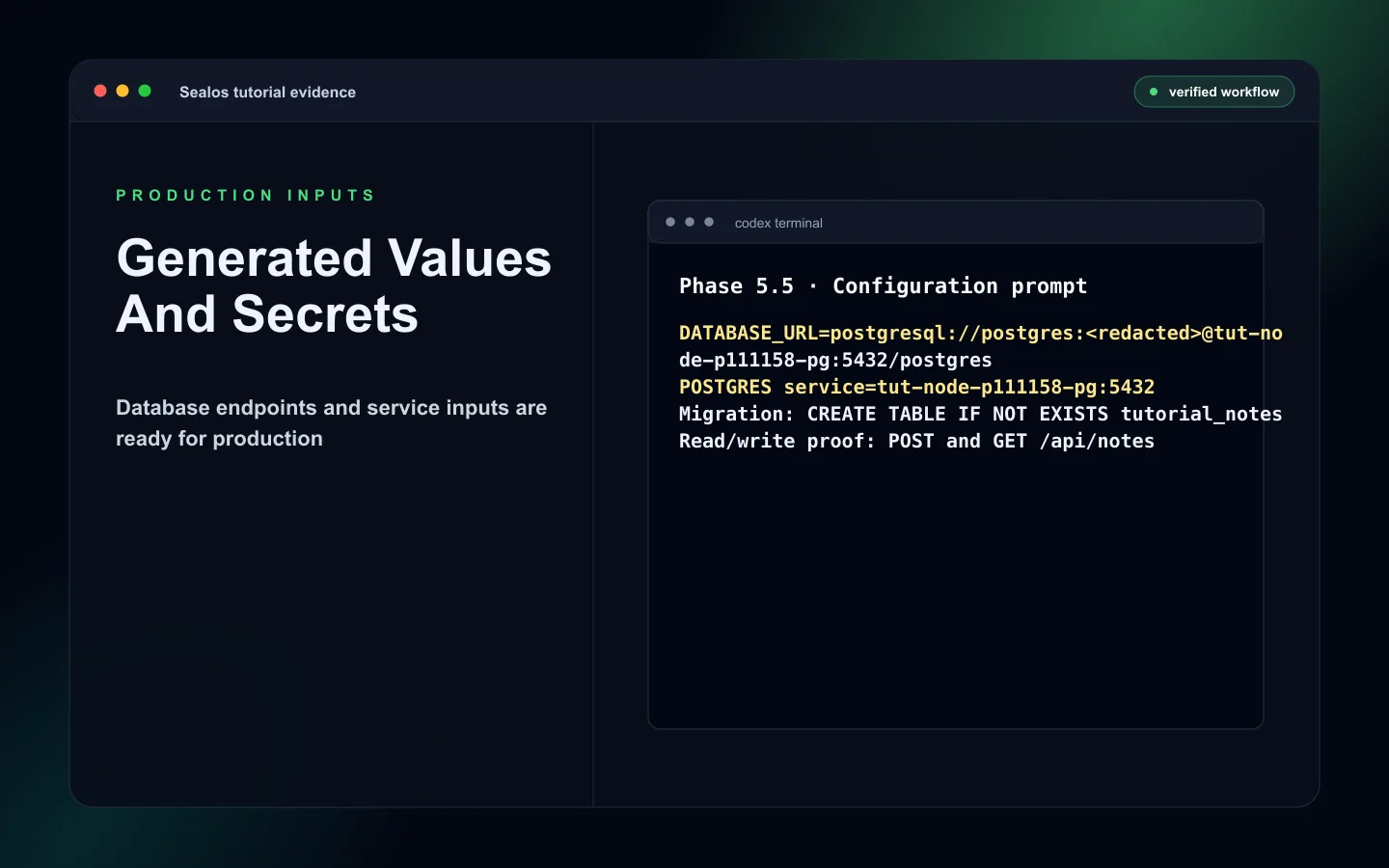

Node.js redacted production inputs for PostgreSQL deployment

Step 5: Let Sealos generate and deploy all resources

After you approve the plan, Sealos generates the template and applies it.

Review the generated Sealos resources:

• App resource for the Node.js service
• Service resource for internal routing
• Ingress resource for public HTTPS access
• Env var mapping for the actual database key
• PostgreSQL resource for the generated database
• Image pull Secret when a private registry image is used
• .sealos/template/index.yaml as the source-of-truth plan

Step 6: Run or verify migrations

Migrations or schema setup must complete before traffic reaches service code that depends on the new schema.

Common commands:

npm run db:migrate

npx prisma migrate deploy

npx drizzle-kit migrate

npx typeorm migration:run

npx node-pg-migrate up

The exact migration command can differ. The important acceptance rule is that the deployed schema matches the deployed service version before the read/write proof runs.

Step 7: Verify the deployed Node.js database path

Run Runtime Truth Pass after deployment and migration.

For a Node.js PostgreSQL service, acceptance evidence should include:

• Public service URL returns a non-5xx response
• Health endpoint returns healthy output
• Service endpoint read/write proof creates and reads a database-backed record
• Operational read/write check confirms PostgreSQL objects exist
• Runtime logs stay clean after the database-backed smoke check
• Connection pooling is appropriate for the service and database size
• Resource footprint is reasonable after smoke traffic
• .sealos/state.json records accepted state after Runtime Truth Pass

Example verification paths:

curl -fsS https://<your-app-url>/healthz
curl -fsS https://<your-app-url>/api/notes
curl -fsS -X POST https://<your-app-url>/api/notes \
  -H 'content-type: application/json' \
  -d '{"title":"runtime proof"}'

Use an operational check when the service has no public write endpoint. The check should still prove the deployed service reaches PostgreSQL with the actual env key it reads.

Persistent storage guidance

PostgreSQL handles database persistence. Add persistent storage only for service-written files that must survive restart or redeploy.

Examples:

• Uploaded files
• Generated reports
• Local media files
• Export files users need later

Common errors and fixes

Next steps

• Prepare launch readiness with Complete Production Deployment Checklist for Node.js on Sealos
• Revisit the beginner flow in How to Deploy a Node.js App to Sealos in 5 Minutes
• Open Sealos Skills when you want the repeatable plugin workflow and command entrypoints
