FastAPI Production Deployment on Sealos

This production guide completes the FastAPI series. It assumes you have already deployed the Tasks API and proved PostgreSQL migration and restart persistence. Use the protected stage-3-production tag as the source for the image, Job, Deployment, security, and rollback contracts.

Who this checklist is for

Use it when your FastAPI release needs:

• A source-linked immutable container digest
• Alembic migration before traffic reaches new code
• Two horizontally safe application replicas backed by PostgreSQL
• Non-root runtime controls and one clear worker model
• Public HTTPS, generated docs, release identity logs, and monitoring
• A documented update, rollback, recovery, backup, and incident path

Plugin setup

Install the same Sealos plugin used in the earlier stages:

codex plugin marketplace add labring/sealos-skills
codex plugin add sealos@sealos

For Claude Code:

claude plugin marketplace add labring/sealos-skills
claude plugin install sealos@sealos

Use $sealos in Codex CLI, select Sealos from the Codex App plugin picker, or use /sealos in Claude Code. A production request should preserve the existing PostgreSQL-backed Tasks API and its verified DATABASE_URL source.

Production launch model

protected Stage 3 source
   |
   v
full-source-SHA image tag -> immutable digest
   |                         |
   |                         +-- Alembic migration Job
   |                         +-- two-replica Deployment
   v
KubeBlocks PostgreSQL <- Secret-backed DATABASE_URL
   |
   v
public HTTPS /health, /docs, and /tasks

The accepted practice used the current KubeBlocks PostgreSQL 16.4 runtime and the protected Stage 3 application image. The Job and Deployment consumed the same final digest.

Production readiness scorecard

Aim for this state before switching traffic:

Protected source and lock       Ready
Immutable image digest          Ready
Secret-backed database URL      Ready
Alembic migration               Complete at 0001
Application replicas            2/2 Ready
Runtime UID/GID                  10001/10001
Uvicorn process model           one worker per Pod
Public HTTPS and Swagger        Ready
Release identity logs           Present on both Pods
Monitoring and alerts           Assigned
Backup and restore path         Rehearsed
Rollback and final recovery     Verified
Runbook                         Written

Step 1: Clone and validate Stage 3

Clone the protected tag and reproduce the lock:

git clone --branch stage-3-production \
  https://github.com/yangchuansheng/sealos-fastapi-tutorial.git
cd sealos-fastapi-tutorial

uv sync --locked
uv export --locked --no-dev --no-emit-project --no-hashes \
  --format requirements.txt --output-file requirements.txt
git diff --exit-code -- requirements.txt

The protected tag peels to source commit:

1dbbf19185207aed44a29ad6a3509d94a3670c43

Step 2: Resolve immutable production state

The publisher exposes a lookup tag for each complete source SHA. Resolve it once and use the digest reference for every production workload:

SOURCE_SHA="$(git rev-parse HEAD)"
[[ "$SOURCE_SHA" =~ ^[0-9a-f]{40}$ ]]

IMAGE_REPOSITORY='ghcr.io/yangchuansheng/sealos-fastapi-tutorial'
IMAGE_TAG="$IMAGE_REPOSITORY:sha-$SOURCE_SHA"
IMAGE_DIGEST="$(crane digest "$IMAGE_TAG")"
[[ "$IMAGE_DIGEST" =~ ^sha256:[0-9a-f]{64}$ ]]
IMAGE_REFERENCE="$IMAGE_REPOSITORY@$IMAGE_DIGEST"

Verify architecture, operating system, revision, source label, and manifest:

crane config "$IMAGE_REFERENCE" | jq -e --arg source "$SOURCE_SHA" \
  '.architecture == "amd64" and .os == "linux" and
   .config.Labels["org.opencontainers.image.revision"] == $source and
   .config.Labels["org.opencontainers.image.source"] ==
     "https://github.com/yangchuansheng/sealos-fastapi-tutorial"'

crane manifest "$IMAGE_REFERENCE" | jq -e . >/dev/null

The accepted final reference is:

ghcr.io/yangchuansheng/sealos-fastapi-tutorial@sha256:c5f6d6df59d05ab9e079aab5dc9a9b0666218ae38f104630587343eaba25b5de

Keep database values in the generated Secret and render the tracked deploy/migration-job.yaml and deploy/application.yaml placeholders into mode-0600 scratch files. Bind both manifests to IMAGE_REFERENCE and the same source release.

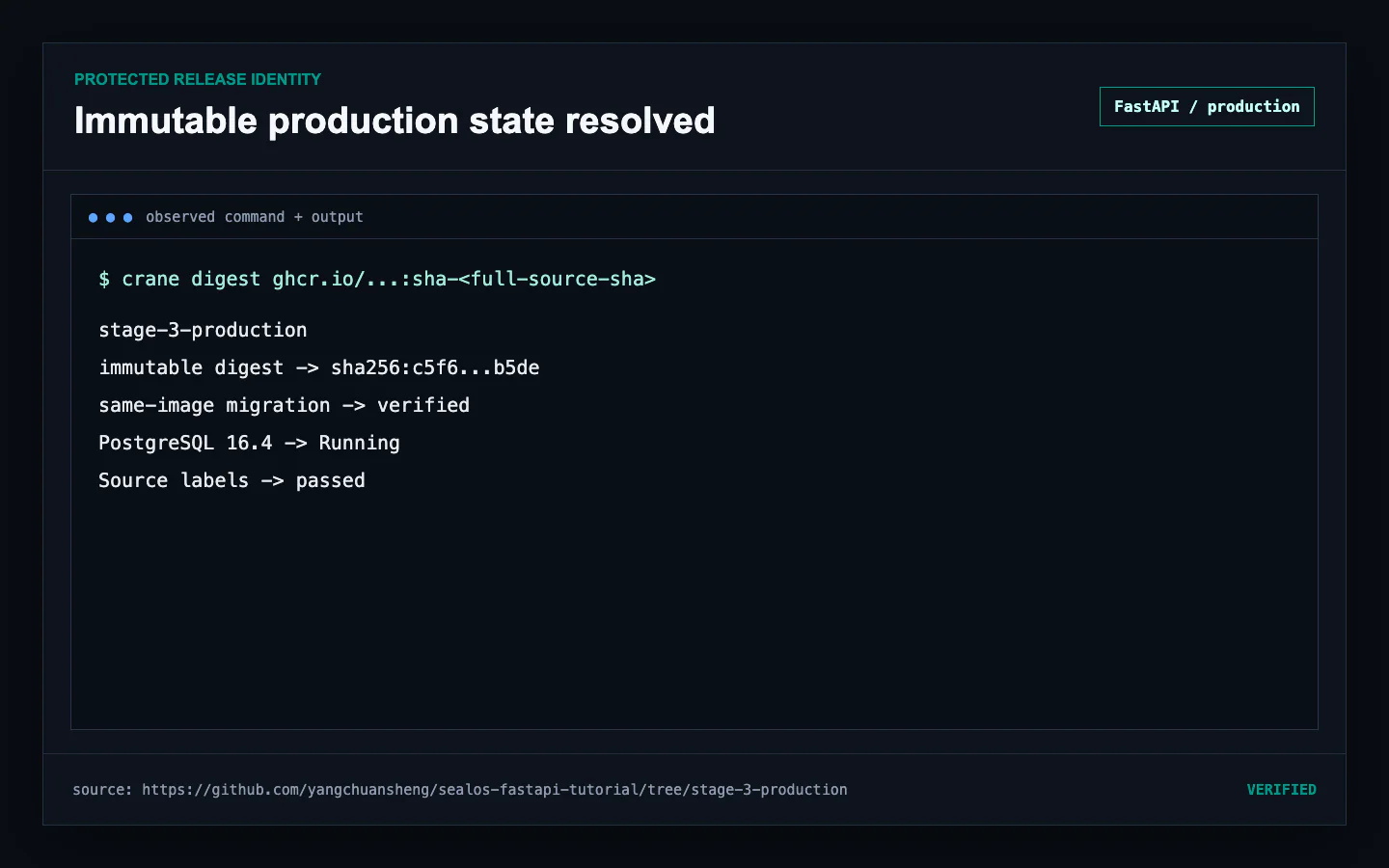

Protected Stage 3 source, immutable final digest, redacted database state, and same-image migration relation

Step 3: Migrate before rolling out replicas

Validate the rendered manifests against the active API, then apply the migration first:

kubectl --namespace <your-namespace> apply \
  --dry-run=server --validate=strict \
  -f <render-dir>/migration-job.yaml

kubectl --namespace <your-namespace> apply --validate=strict \
  -f <render-dir>/migration-job.yaml

kubectl --namespace <your-namespace> wait \
  --for=condition=complete \
  job/<migration-job> \
  --timeout=300s

The accepted migration Job ran as UID/GID 10001, used the exact final image digest, and reached Complete=True. An independent same-image verification Job returned:

0001 (head)

Step 4: Roll out two hardened replicas

Apply the application only after migration completion:

kubectl --namespace <your-namespace> apply --validate=strict \
  -f <render-dir>/application.yaml

kubectl --namespace <your-namespace> rollout status \
  deployment/<your-fastapi-app> \
  --timeout=240s

kubectl --namespace <your-namespace> get \
  deployment/<your-fastapi-app> \
  -o jsonpath='{.status.readyReplicas}{"/"}{.spec.replicas}{" Ready\n"}'

Require 2/2 Ready. The protected runtime contract gives each Pod:

• UID/GID 10001
• One PID-1 Uvicorn application command
• One Uvicorn worker bound to 0.0.0.0:8000
• A read-only root filesystem
• Dropped Linux capabilities
• Disabled privilege escalation
• RuntimeDefault seccomp
• A memory-backed writable /tmp

The fresh practice verified the exact final image ID on both Pods, two Ready replicas, and restart counts of 0.

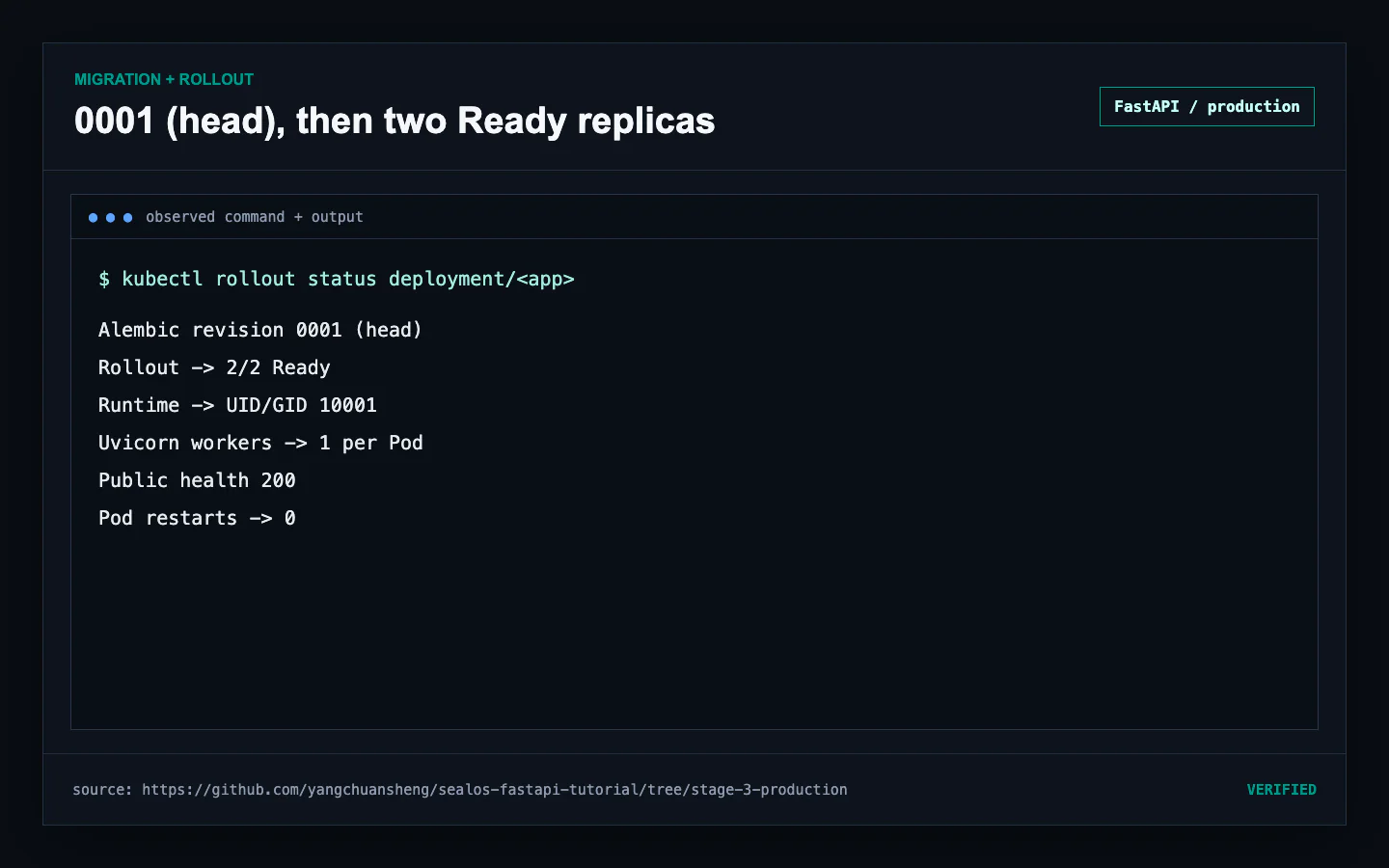

Same-image Alembic migration completed before a 2 of 2 Ready rollout at UID and GID 10001 with health 200

Step 5: Verify public HTTPS, docs, tasks, and logs

Use the generated domain as the public acceptance surface:

curl --fail --silent https://<your-sealos-url>/health
curl --fail --silent https://<your-sealos-url>/docs | grep 'Swagger UI'
curl --fail --silent https://<your-sealos-url>/tasks

The current practice verified TLS without bypass flags, exact health 200, Swagger 200, public task create 201, and task read 200.

Correlate release identity in both Pod logs:

kubectl --namespace <your-namespace> logs \
  -l "app.kubernetes.io/name=<your-fastapi-app>" \
  --all-containers --prefix | \
  grep -F 'event=service_start'

Both Pods emitted the credential-free event=service_start release marker. The final 61-second Runtime Truth window reported zero active failures, zero findings, zero restart delta, zero Pod replacement, and stable Ready state.

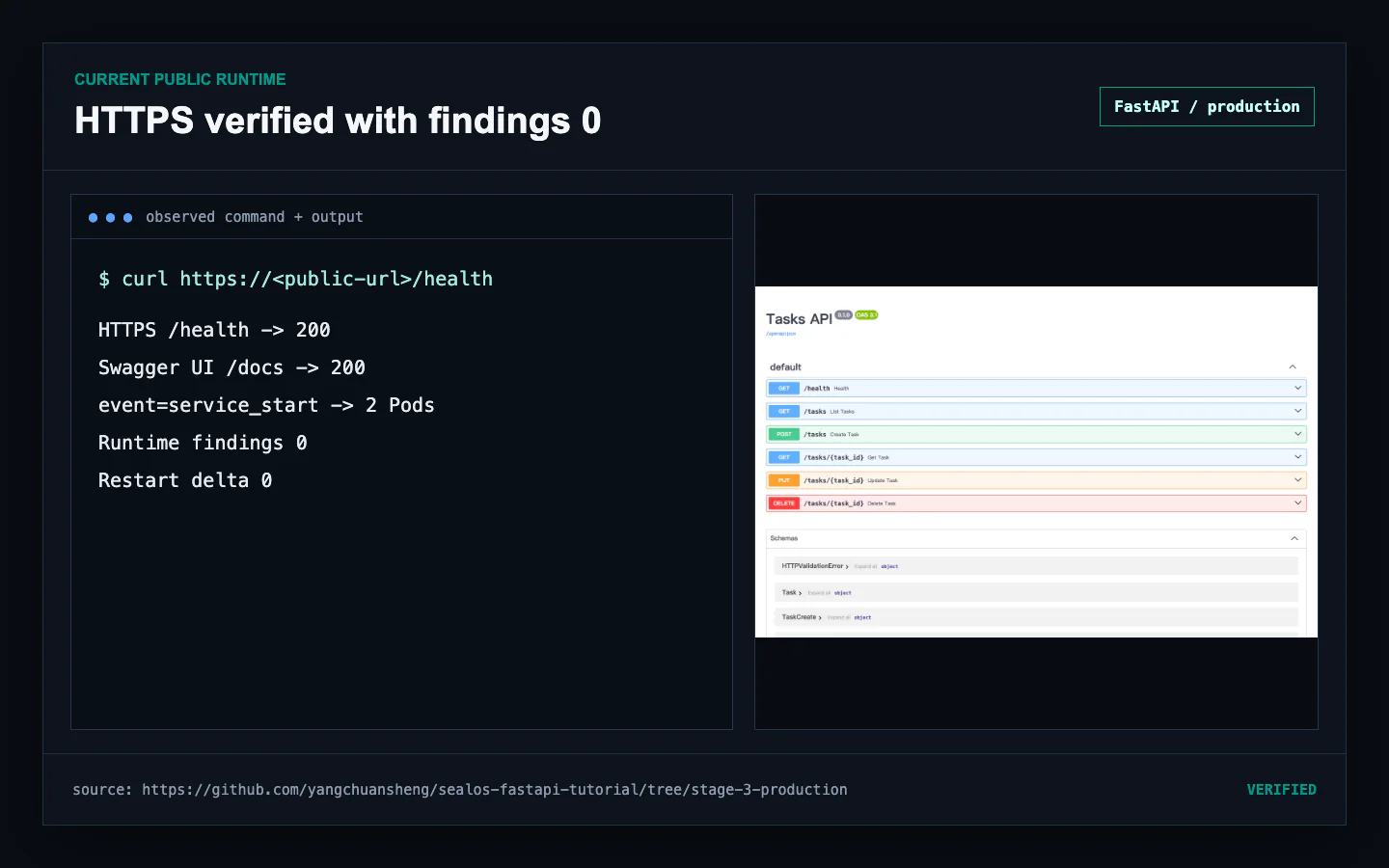

Public Sealos HTTPS health and Swagger surface beside credential-free FastAPI release logs with zero runtime findings

Monitoring and incident signals

Monitor the same surfaces used for acceptance:

• Public HTTPS /health status and latency
• Deployment Ready and Available replica counts
• Pod restarts and replacements
• Service endpoint inventory
• Migration Job completion and revision
• event=service_start release identity on each new Pod
• Database connection failures after task create and read smoke checks
• Resource saturation for the two-replica workload and PostgreSQL Cluster

Route alerts to a named owner and record the first diagnostic commands in the runbook. Keep health checks lightweight and use a real task smoke when you need database-path evidence.

Backup and migration safety

Before a schema-changing release:

• Create or verify a PostgreSQL recovery point
• Record the current source SHA and image digest
• Review whether the Alembic change is backward-compatible with the previous app
• Test restore or forward repair in a separate environment
• Keep the previous digest available through the recovery window
• Assign one operator to the application rollback and one to database recovery

Image rollback preserves application code state. Database recovery follows the schema and data decision recorded for that release.

UPDATE workflow

Use UPDATE when .sealos/state.json and live Sealos resource truth agree on the existing application. Resolve the new full-source-SHA image to a digest, run its same-image migration, apply the retained final application manifest, wait for rollout, and repeat Runtime Truth Pass. Use DEPLOY when recorded state cannot identify a verifiable live application.

Keep these values in the release record:

source SHA
immutable image digest
migration revision
Deployment revision
public health result
task continuity result
release log result

Step 6: Roll back and explicitly recover

The accepted historical authority exercised four states against one PostgreSQL Task 1:

A  baseline deploy        Deployment revision 1
B  final update           Deployment revision 2
A  rollout undo           Deployment revision 3
B  explicit final apply   Deployment revision 4

For immediate application rollback:

kubectl --namespace <your-namespace> rollout undo \
  deployment/<your-fastapi-app>

kubectl --namespace <your-namespace> rollout status \
  deployment/<your-fastapi-app> \
  --timeout=240s

curl --fail --silent https://<your-sealos-url>/tasks/1

Recovery explicitly reapplies the retained final manifest:

kubectl --namespace <your-namespace> apply --validate=strict \
  -f <render-dir>/application.yaml

kubectl --namespace <your-namespace> rollout status \
  deployment/<your-fastapi-app> \
  --timeout=240s

curl --fail --silent https://<your-sealos-url>/tasks/1

The checksum-sealed A-B-A-B evidence kept Task 1 readable through all four controller revisions, passed rollout undo, and passed explicit final recovery.

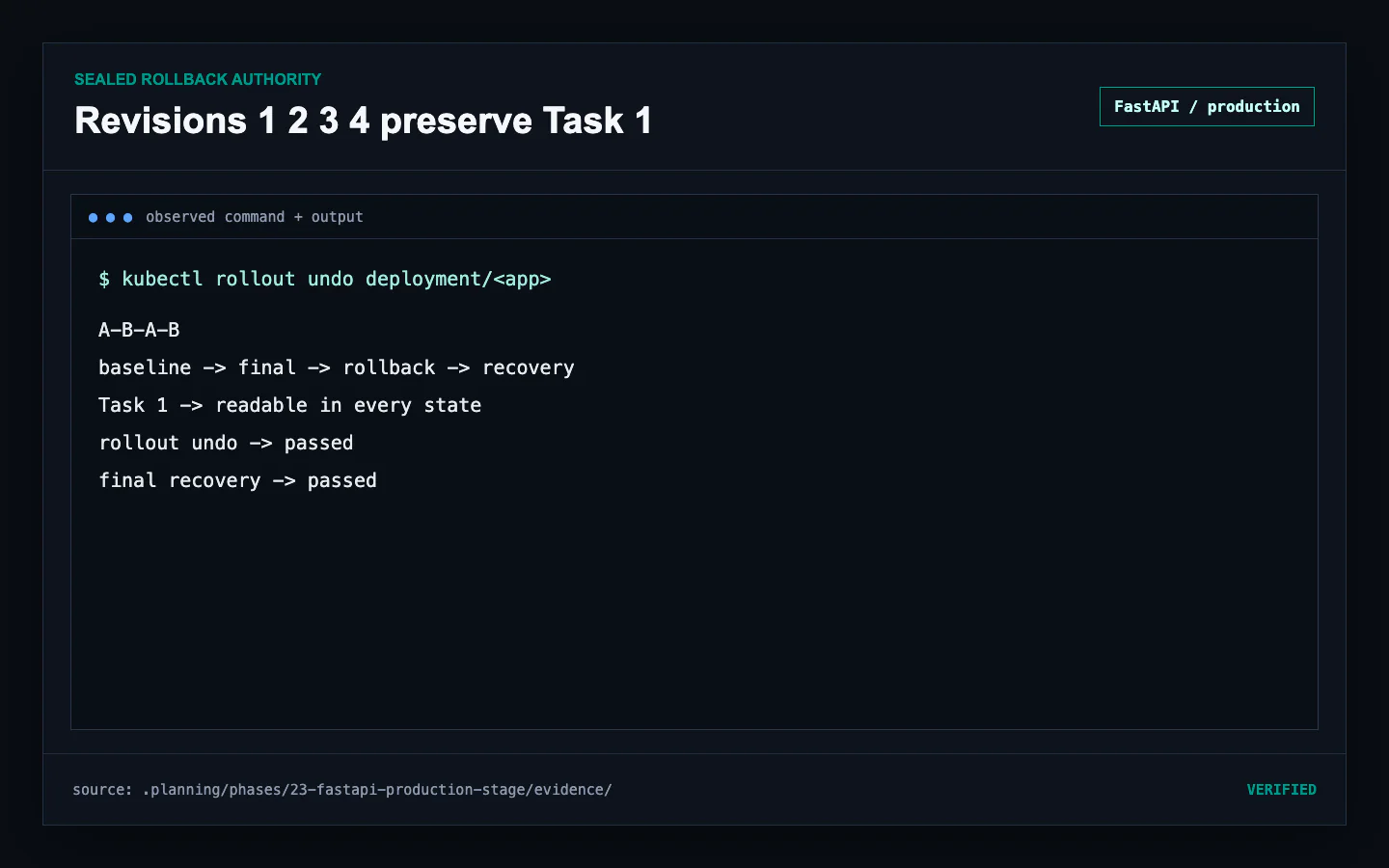

Checksum-sealed A-B-A-B FastAPI controller revisions preserving Task 1 through rollout undo and explicit final recovery

Production runbook

Record this sequence for every release:

1. Confirm the protected source and clean lock reproduction.
2. Resolve the complete source-SHA image tag to its immutable digest.
3. Verify image architecture, source, and revision labels.
4. Create a database recovery point for a schema-changing release.
5. Render Job and Deployment from the same digest and Secret reference.
6. Run the migration Job and verify Complete=True plus Alembic head.
7. Roll out two replicas and verify image IDs, UID/GID, process model, and restarts.
8. Run public health, Swagger, task create/read, endpoint, and log checks.
9. Observe a stable Runtime Truth window and record accepted state.
10. Keep rollout undo and explicit final manifest recovery ready.

Failure guide

Migration completes but the app remains unready

Verify the application and Job consume the same Secret-backed DATABASE_URL, then read Alembic current from the same image. Require 0001 (head) for this source stage.

One replica has a different image ID

Stop acceptance. Compare the Deployment digest, both Pod image IDs, and the source release label. Resume after both replicas use the intended digest.

Logs lack event=service_start

Inspect the PID-1 command and release environment. Each newly started Pod from this protected image emits one credential-free marker.

Rollback restores code but task readback fails

Check PostgreSQL reachability, migration compatibility, and the retained Task ID. Use the release's database recovery decision when schema or data state has changed.

.sealos/state.json points at stale resources

Use live resource truth to choose repair or a fresh DEPLOY. Record new state only after Runtime Truth Pass accepts the replacement.

Final checklist

• The checkout points at protected stage-3-production
• The image resolves from the complete source SHA to an immutable digest
• Image architecture and source/revision labels pass
• Migration and application manifests use the same digest and Secret source
• The migration Job reaches Complete=True at 0001 (head)
• The Deployment reaches 2/2 Ready
• Both Pods run as UID/GID 10001 with one Uvicorn worker
• Both Pod image IDs match the intended digest and restart count is zero
• Public HTTPS /health, /docs, and /tasks pass
• Both Pods emit event=service_start
• Monitoring, backup, restore, and incident ownership are recorded
• UPDATE or DEPLOY mode is selected from live resource truth
• Rollout undo and explicit final recovery preserve task continuity
• The production runbook is stored with the release

The FastAPI Framework Tutorial Series is now complete: deploy, PostgreSQL, and production all use one continuous Tasks API and one protected source lifecycle.
