Deploy FastAPI with PostgreSQL on Sealos

This second guide keeps the same FastAPI Tasks API and replaces process-local storage with PostgreSQL. The protected stage-2-postgresql tag uses SQLAlchemy 2, the explicit psycopg 3 dialect, and Alembic revision 0001.

Start with the Stage 1 deployment guide if you still need the initial Sealos plugin and Runtime Truth workflow. Continue to the production guide after this stage proves migration order and persistence.

Key takeaways

Prerequisites

You need:

• The Sealos plugin installed and authenticated
• Git, Python 3.12, uv, curl, and kubectl
• Access to a Sealos workspace that can create application and database resources
• A fresh PostgreSQL database generated by the deployment plan

The protected README uses PostgreSQL 17 for its source integration harness. The accepted current Sealos practice generated a KubeBlocks postgresql-16.4.0 Cluster from the installed plugin's mandatory database rule. Keep both facts in context: PostgreSQL 17 is the source prerequisite, while the generated Cluster version is the actual current Sealos runtime selection.

Architecture

Public HTTPS
   |
   v
FastAPI Tasks API
   |  DATABASE_URL from a Secret
   v
KubeBlocks PostgreSQL

Migration Job -- same source/runtime contract --> Alembic 0001

The application remains responsible for /health, generated /docs, and /tasks CRUD. Alembic owns the schema. PostgreSQL owns durable task rows across application process replacement.

Step 1: Inspect the database-ready source

Clone the protected stage:

git clone --branch stage-2-postgresql \
  https://github.com/yangchuansheng/sealos-fastapi-tutorial.git
cd sealos-fastapi-tutorial

Reproduce the locked environment and runtime export:

uv sync --locked
uv export --locked --no-dev --no-emit-project --no-hashes \
  --format requirements.txt --output-file requirements.txt
git diff --exit-code -- requirements.txt

The source reads one SQLAlchemy URL:

export DATABASE_URL='<postgresql+psycopg-url>'

Keep the actual value in a Sealos Secret. The tracked production migration contract reads key url from Secret sealos-fastapi-postgresql.

Inspect the migration sequence locally against an empty database:

uv run alembic upgrade head
uv run alembic current
uv run alembic upgrade head

The first upgrade records revision 0001; the final command proves the same head is repeatable.

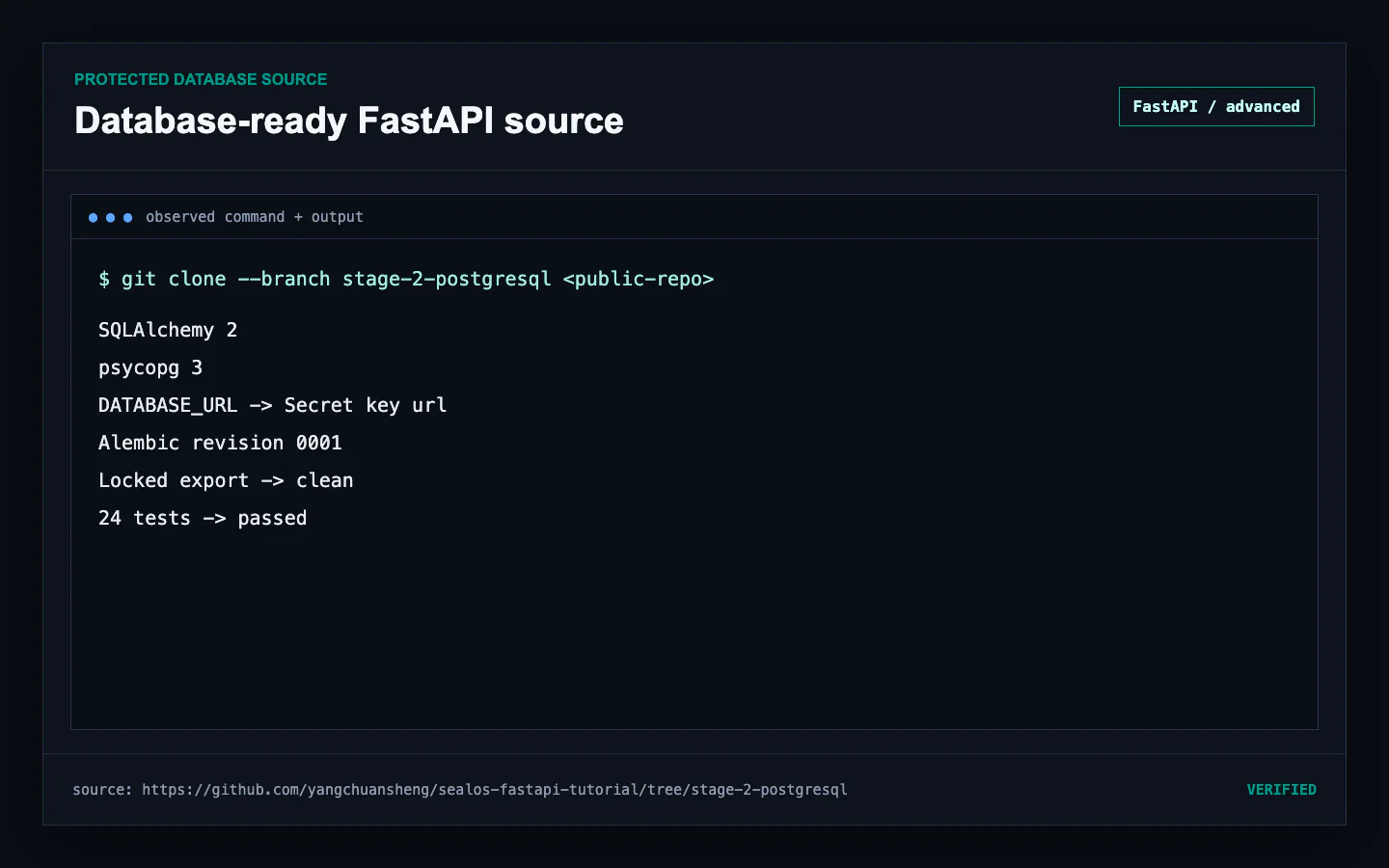

Protected FastAPI Stage 2 source showing SQLAlchemy 2, psycopg 3, DATABASE_URL, and Alembic revision 0001

Step 2: Ask Sealos for FastAPI and PostgreSQL together

From the protected checkout, use Codex CLI:

$sealos deploy this FastAPI Tasks API to Sealos with PostgreSQL

Or use Claude Code:

/sealos deploy this FastAPI Tasks API to Sealos with PostgreSQL

The request should produce one resource plan for the application and database. Review the plan before DEPLOY so the database URL source, migration order, and public application path remain explicit.

Step 3: Review the generated resource plan

The fresh accepted plan contained these functional parts:

• A FastAPI StatefulSet, Service, HTTPS Ingress, and App resource
• A KubeBlocks PostgreSQL 16.4 Cluster and its generated Service
• A generated connection Secret used as the source for DATABASE_URL
• A ConfigMap for the protected source bootstrap
• A one-shot migration Job
• Run-owned ServiceAccount, Role, and RoleBinding resources

The plugin completed strict artifact checks, the database quality gate, and a server-side dry run before resource creation. Review generated values in place and keep the connection URL redacted from output and retained logs.

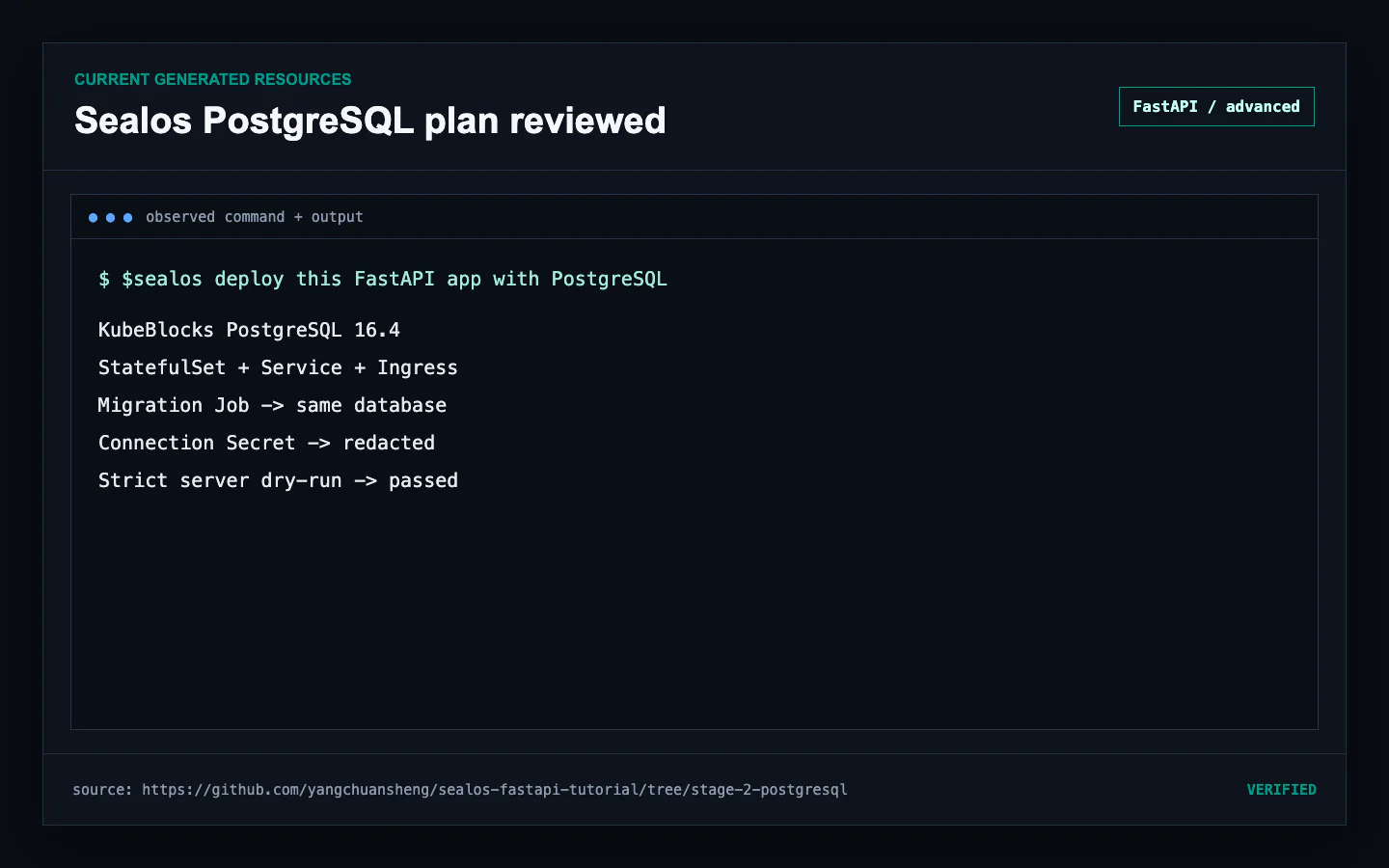

Redacted current Sealos plan for the FastAPI app, KubeBlocks PostgreSQL 16.4, Service, Ingress, Secret, and migration Job

Step 4: Migrate before accepting readiness

The source contract validates and applies deploy/migration-job.yaml before the application is accepted:

kubectl --namespace <your-namespace> apply \
  --dry-run=server --validate=strict \
  -f deploy/migration-job.yaml

kubectl --namespace <your-namespace> apply --validate=strict \
  -f deploy/migration-job.yaml

kubectl --namespace <your-namespace> wait \
  --for=condition=complete \
  job/sealos-fastapi-migration \
  --timeout=300s

Before migration, the practiced app returned 503:

{ "detail": "Database is not ready" }

Two independently created migration Jobs then reported Complete=True at Alembic 0001. The repeat ran with a restricted security context and reached the same revision. Only after that result did schema-aware /health return 200.

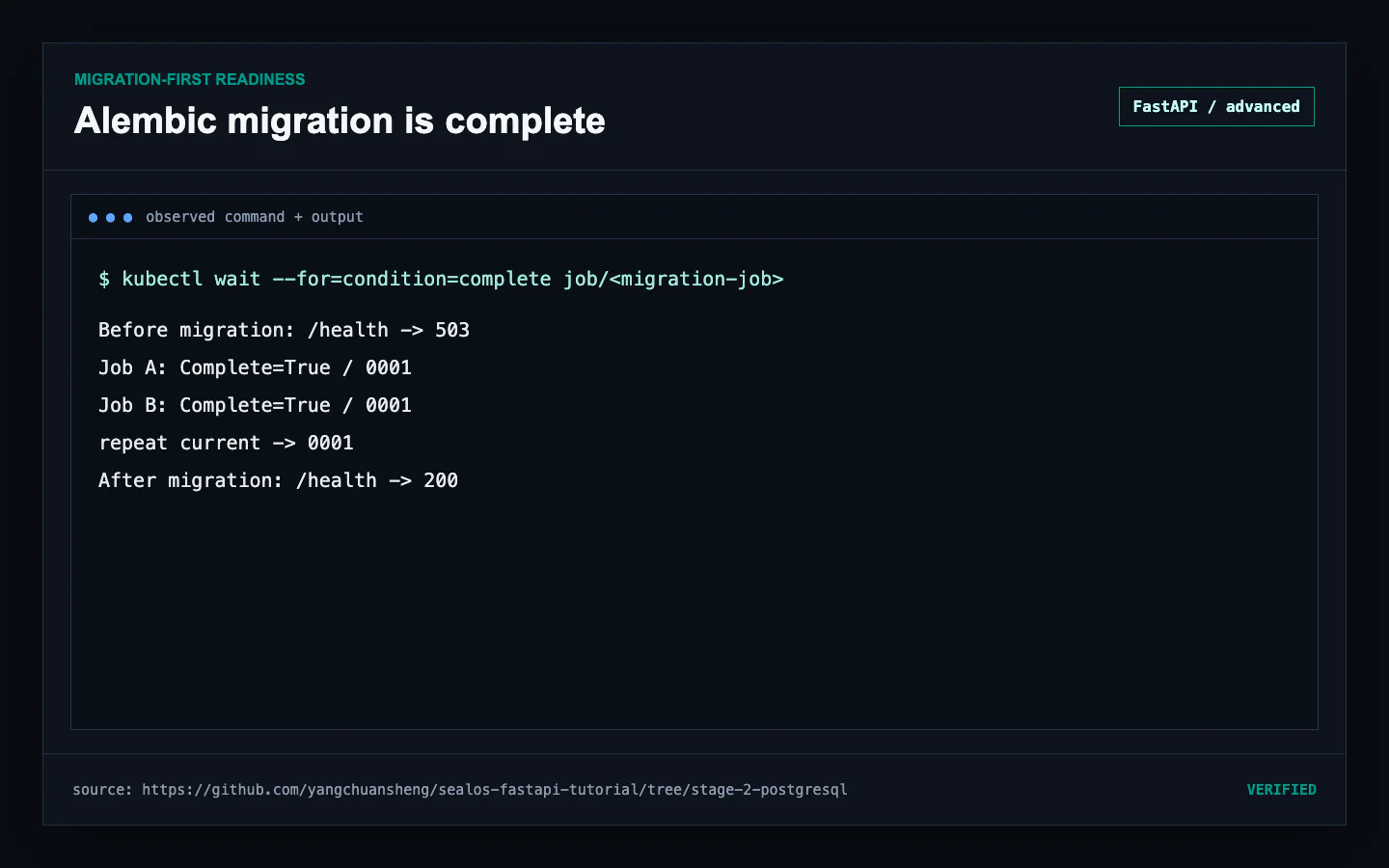

Fresh and repeated FastAPI migration Jobs reaching Complete True at Alembic 0001 after the unmigrated 503 state

Step 5: Validate the database behavior suite

Point both source test boundaries at a migrated test database:

export TEST_DATABASE_URL="$DATABASE_URL"
uv run pytest -q

The accepted clean practice completed 24 PostgreSQL tests in 203.23 seconds. One upstream Starlette deprecation warning was classified as non-blocking. The tests observe health, docs, CRUD, validation, stable errors, and persistence through public HTTP interfaces.

Step 6: Verify public CRUD

Check readiness and documentation on the generated domain:

curl --fail --silent https://<your-sealos-url>/health
curl --fail --silent https://<your-sealos-url>/docs | grep 'Swagger UI'

Create and read a task:

curl --fail --silent \
  --request POST \
  --header 'Content-Type: application/json' \
  --data '{"title":"Persistent FastAPI task"}' \
  https://<your-sealos-url>/tasks

curl --fail --silent https://<your-sealos-url>/tasks/1

The accepted practice returned 201 for create and 200 for read.

Step 7: Prove process-restart persistence

Restart the generated application workload while retaining the database:

kubectl --namespace <your-namespace> rollout restart \
  statefulset/<your-fastapi-app>

kubectl --namespace <your-namespace> rollout status \
  statefulset/<your-fastapi-app> \
  --timeout=300s

Read the same task after the replacement process becomes Ready:

curl --fail --silent https://<your-sealos-url>/tasks/1

The fresh practice read task 1 back with status 200 after process replacement and again after a restricted UID/GID rollout. Its final 85-second runtime window had zero active failures, zero log findings, and zero restart delta.

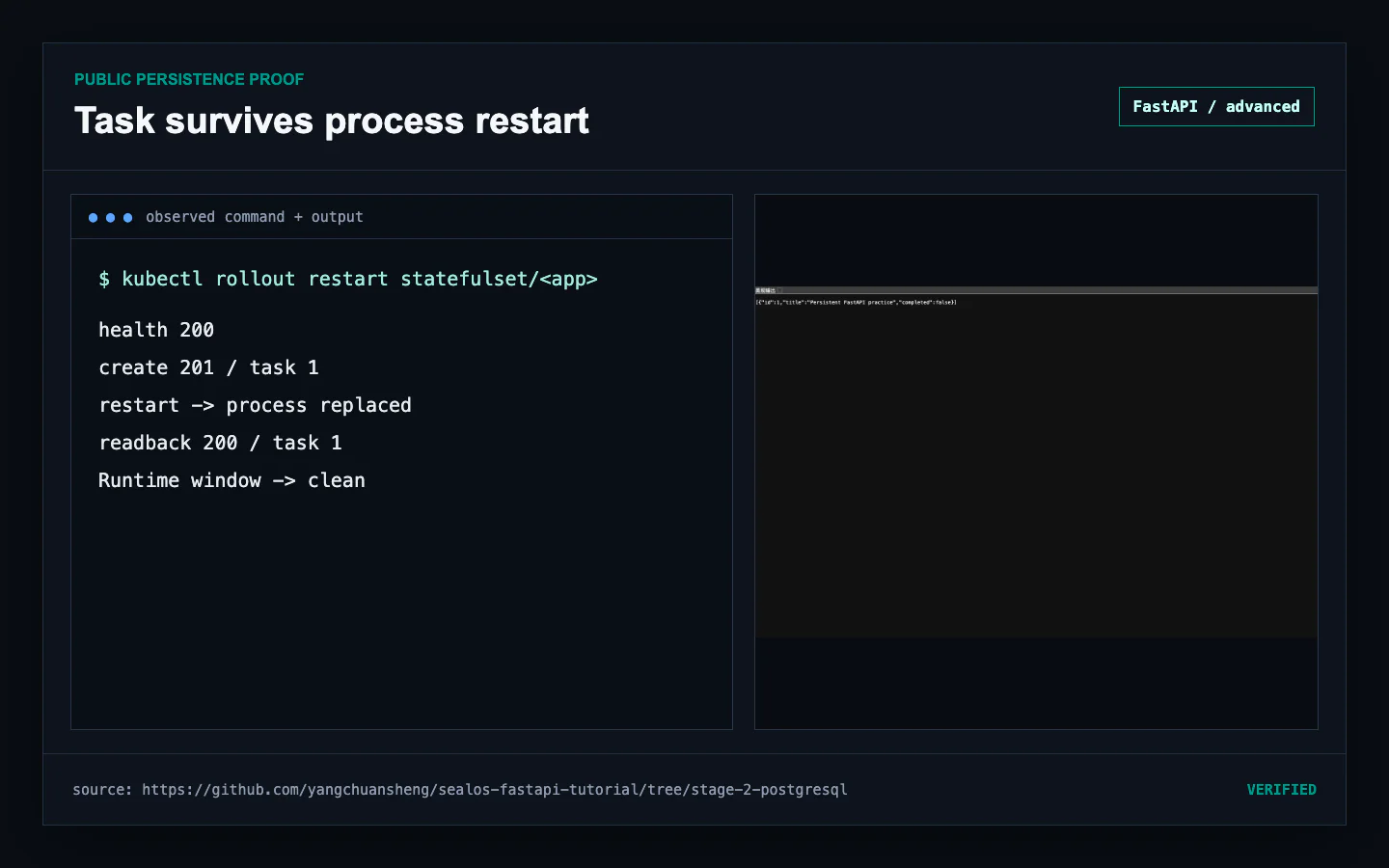

Public FastAPI task remaining readable after process replacement and restricted rollout against the same PostgreSQL database

Readiness contract

Use /health as a schema-aware gate:

• 200 {"status":"ok"} means PostgreSQL is reachable and the tasks schema exists.
• 503 {"detail":"Database is not ready"} means the URL, server, or schema still needs attention.

Application startup does not create tables. Keep migration completion as an explicit prerequisite for readiness and scaling.

Common failures

/health stays at 503

Check that DATABASE_URL comes from the generated database Secret, the KubeBlocks Cluster is Running, and the migration Job is Complete at 0001.

The migration Job cannot connect

Confirm the Job and application consume the same connection source. Keep the URL out of command history and inspect Secret references by name and key.

Tests report one migration failure

The protected suite uses both DATABASE_URL and TEST_DATABASE_URL. Set both for the test process, and point them at the migrated test database.

Tasks disappear after restart

Confirm the restarted process still reads the same generated DATABASE_URL. A fresh local URL or a different database creates a separate task set.

Completion checklist

• The checkout points at stage-2-postgresql
• Lock reproduction and runtime export checks pass
• The plan contains app, PostgreSQL, Secret, Service, Ingress, and Job resources
• The generated PostgreSQL version is reviewed as runtime truth
• The migration Job reports Complete=True at 0001
• A repeated migration remains at 0001
• Schema-aware /health returns 200
• Public create and read requests succeed
• The same task survives application process replacement
• Runtime logs and restart deltas remain clean

Continue with FastAPI Production Deployment on Sealos for immutable images, hardened replicas, release logs, and rollback recovery.
